304/316 Stainless Steel Security Mesh

304/316 Stainless Steel Security Mesh gives buyers two common stainless options for residential, commercial and coastal window projects.

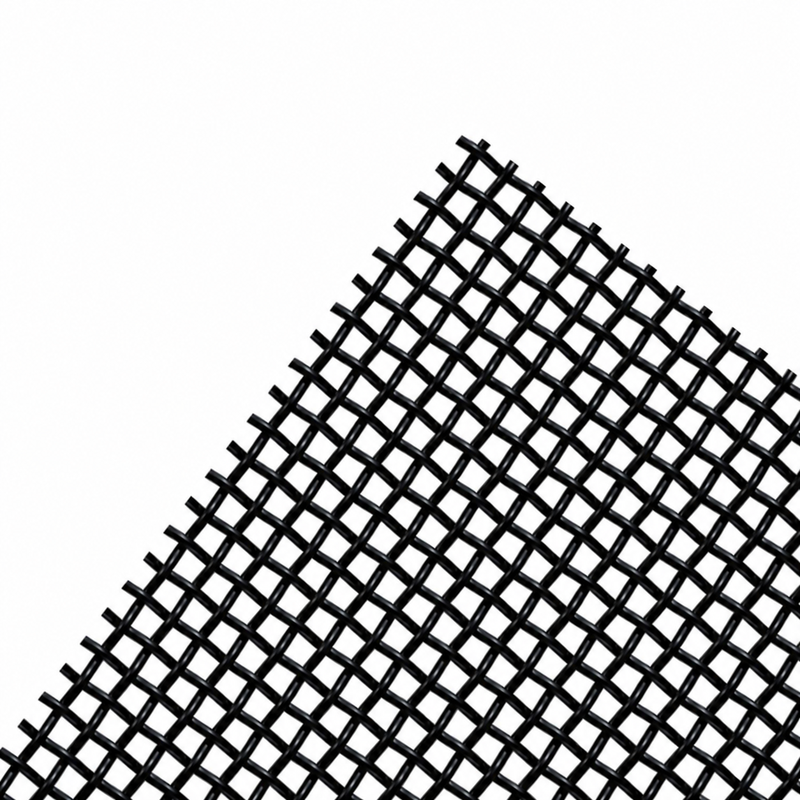

304/316 Stainless Steel Security Mesh product image
Key Product Details
  • Material
    Standard SUS 304 / SUS 316L Stainless Steel
  • Coating
    Pickling Passivation + High-Purity Electrostatic Powder Coating
  • Tensile Strength
    700 - 740 MPa
Materials & Performance

Choose SUS 304 for general anti-theft screen applications, or specify SUS 316L when chloride exposure, humidity or marine air is a concern.

Selection Guide

Mesh size, color, frame compatibility and packing method can be checked against project drawings before quotation.

Typical Specifications
304/316 Stainless Steel Security Mesh key specification reference
Parameter18 Mesh (0.33mm)15 Mesh (0.41mm)12 Mesh (0.63mm)11 Mesh (0.88mm)
Data note: Reference values are for preliminary selection. Confirm final specifications against drawings, samples and order requirements.
Reference modelStandard Security Mesh | SS304/SS316L
MaterialStandard SUS 304 / SUS 316L Stainless Steel
CoatingPickling Passivation + High-Purity Electrostatic Powder Coating
Tensile Strength700 - 740 MPa
Ventilation50%41%43%40%
ApplicationHD Visibility / Insect Prevention / Premium Anti-Theft Protection
Weight1.05 kg/m²1.27 kg/m²2.25 kg/m²3.75 kg/m²
Send Your Requirement

Send the 304/316 Stainless Steel Security Mesh specification, quantity, packing requirements and destination for a project quotation.
