Suitable for security windows, doors, balcony protection and ventilation openings.

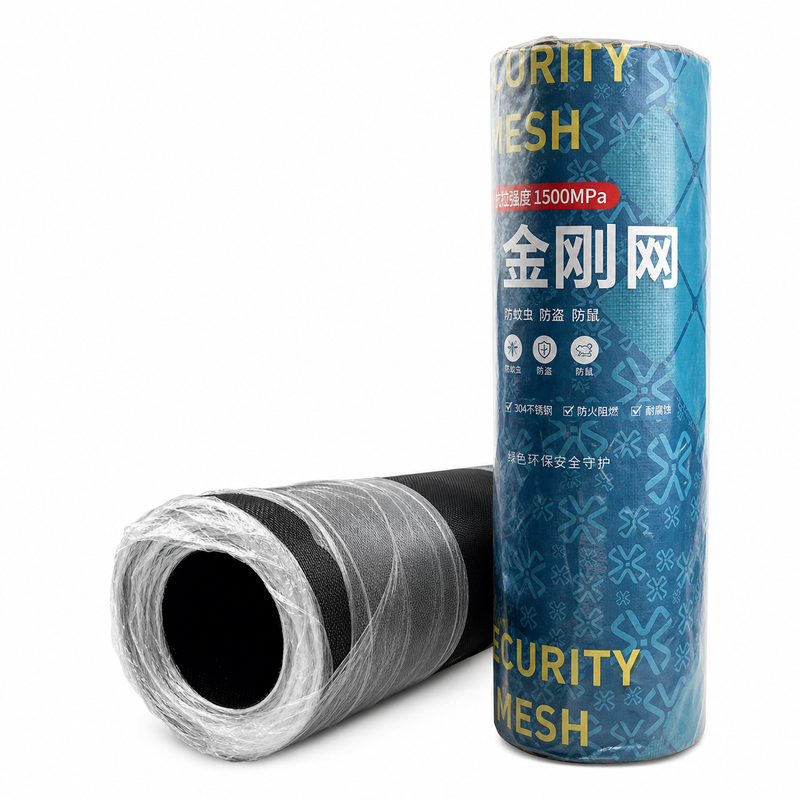

Extra Hard Security Mesh is designed for projects that require a much stronger screen panel than standard stainless security mesh.

The ultra-hard cold-rolled SUS 304 process reaches a 1350 - 1550 MPa tensile-strength range, making it suitable for large sliding doors and high-impact areas.
Before production, check the required roll width, mesh count, frame groove and packing plan to avoid installation mismatch.
| Parameter | 18 Mesh HD (0.3mm) | 15 Mesh Strong (0.41mm) |
|---|---|---|
| Data note: Reference values are for preliminary selection. Confirm final specifications against drawings, samples and order requirements. | ||
| Reference model | 1500MPa Ultra-Hard Security Mesh | Cold-Rolled SS304 | 2.5m Wide | |
| Material | SUS 304 (Ultra-Hard Cold-Rolled Process) | |
| Size / Roll | 2.5 Meters (Perfect for Large Sliding Doors) | |
| Tensile Strength | 1350 - 1550 MPa (Avg. 1482MPa) | |
| Light / Clarity | 76% | 66% |
A 2.5 meter roll width helps reduce joins on wide openings, so fabricators can prepare cleaner door and balcony assemblies.
Send the Extra Hard Security Mesh specification, quantity, packing requirements and destination for a project quotation.
