Used in fixed, sliding, casement, pleated and retractable screen systems.

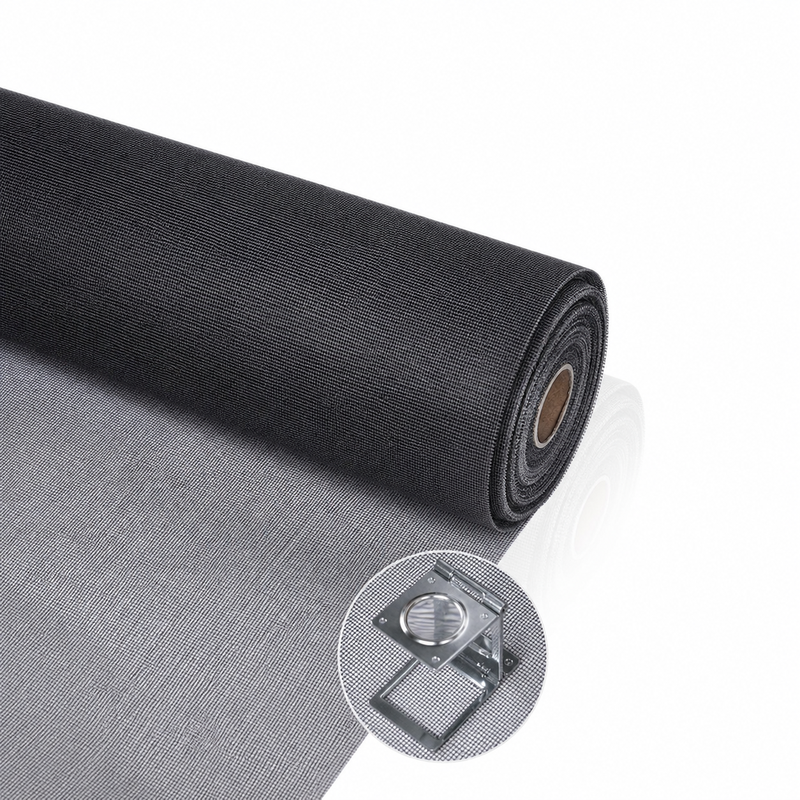

Polyester Screen Mesh is used for screen systems that need flexible handling and dependable insect prevention.

The polyester structure provides good recovery after installation and can be specified for different mesh counts and roll widths.
Share the required color, mesh opening, roll length and packing method so the quotation matches your actual usage.
| Parameter | Reference Data |
|---|---|
| Data note: Reference values are for preliminary selection. Confirm final specifications against drawings, samples and order requirements. | |
| Reference model | 32 x 16 Mesh Polyester Mesh; 20 Mesh Flame Retardant Polyester Mesh |
| Material | Multi-strand polyester yarn; modified flame-retardant polyester option |
| Mesh / Aperture | 32 x 16 high-density option; 20 mesh airflow option |
| Wire / Thickness | 0.28mm; 60g/m² (+/-5g) reference weight |
| Size / Roll | 100 meters per roll reference length |
| Coating / Performance | Composite resin coating with flame-retardant option |
It is suitable for residential doors, window screens and light commercial applications where airflow and durability both matter.
Send the Polyester Screen Mesh specification, quantity, packing requirements and destination for a project quotation.
