316L Stainless Steel Security Mesh

316L Stainless Steel Security Mesh is aimed at premium doors and windows where corrosion resistance is more important than basic screening cost.

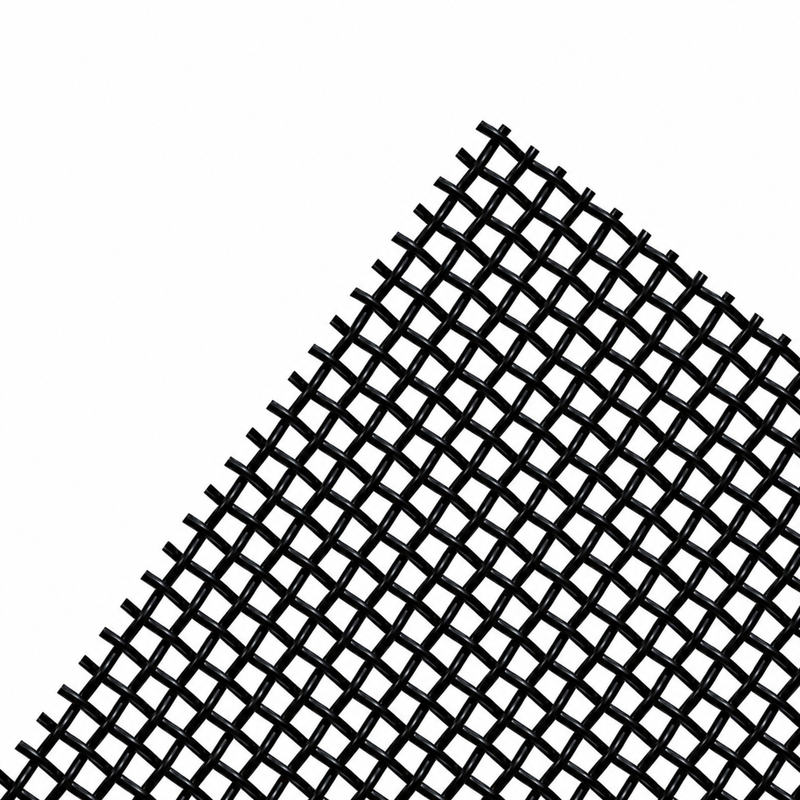

316L Stainless Steel Security Mesh product image
Key Product Details
  • Material
    SUS 316L Stainless Steel (Premium Marine Grade)
  • Coating
    Electrostatic Powder Coating + 200 °C High-Temp Curing
  • Tensile Strength
    700-740 MPa (High Impact Resistance)
Materials & Performance

The marine-grade SUS 316L material and 200 °C cured electrostatic powder coating help protect the mesh in humid or coastal environments.

Selection Guide

Confirm aperture, wire diameter, panel size and surface color so the mesh can match the chosen window system accurately.

Typical Specifications
316L Stainless Steel Security Mesh key specification reference
Parameter18 Mesh (0.33mm)15 Mesh (0.41mm)13 Mesh (0.56mm)12 Mesh (0.63mm)11 Mesh (0.88mm)
Data note: Reference values are for preliminary selection. Confirm final specifications against drawings, samples and order requirements.
Reference model316L Stainless Steel Security Mesh | 15-Year Manufacturer
MaterialSUS 316L Stainless Steel (Premium Marine Grade)
CoatingElectrostatic Powder Coating + 200 °C High-Temp Curing
Tensile Strength700-740 MPa (High Impact Resistance)
Ventilation50%41%36%43%40%
Light / Clarity56%51%50%50%37%
UV Blocking55%61%61%63%69%
Send Your Requirement

Send the 316L Stainless Steel Security Mesh specification, quantity, packing requirements and destination for a project quotation.
